ECG Challenge: October 2018

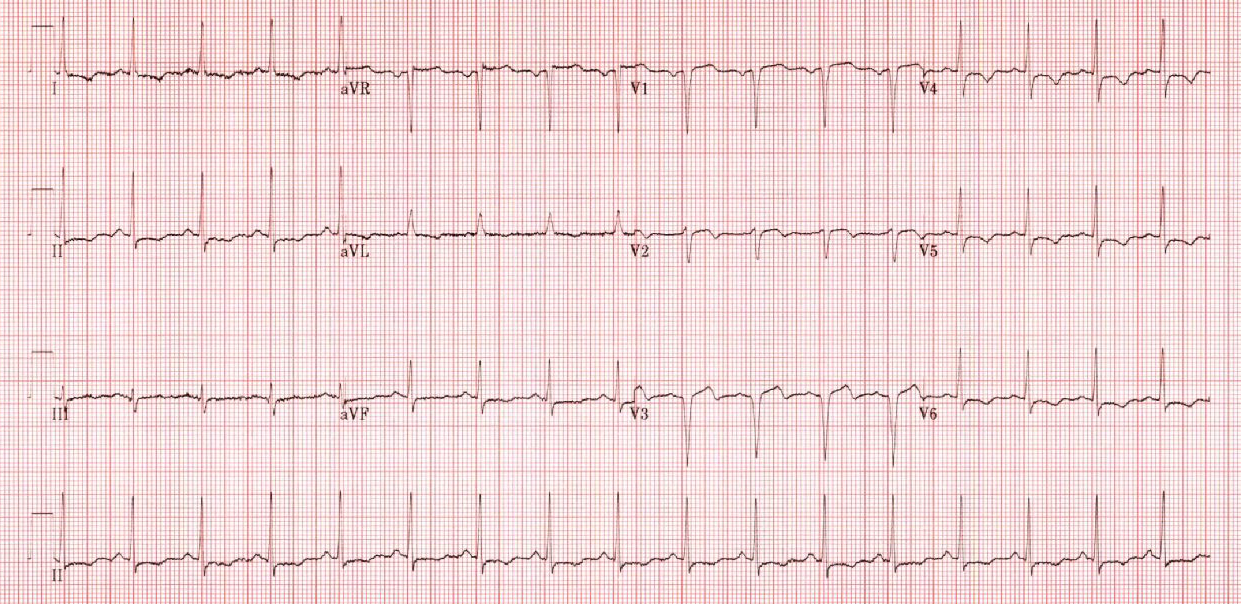

A 44-year-old male presents to the ED with intermittent chest pain for 2 weeks, worse with exertion, and resolves with rest. He is currently symptom free. What is your interpretation of his EKG?

ECG Challenge: October 2018

Pseudo-Wellen’s Syndrome
The EKG shows a normal sinus rhythm, biphasic T-waves in V2 and V3, STD and TWI in the lateral leads, increased S-wave amplitude in aVR and V1-V3, and poor R-wave progression. The EKG was initially interpreted as concerning for Type A Wellen’s Syndrome, but after further discussion it was determined that the EKG abnormalities are more likely caused by LVH (also called Pseudo-Wellen’s). In particular, Wellen’s syndrome is associated with a preserved R-wave progression, whereas LVH is a common cause of poor R-wave progression.

Wellen’s syndrome, also called “coronary T-wave syndrome” or “the widow maker sign,” consists of characteristic EKG findings that suggest critical LAD stenosis. If untreated, approximately 75% of patients will develop an anterior myocardial infarction, usually within a few days. The classic EKG findings are biphasic T waves in V2-V3 (Type A, 25% of cases) or deeply inverted T waves in V2-V3 (Type B, 75% of cases). This EKG pattern is associated with a pain-free state and the T-wave abnormalities are result of reperfusion. Other EKG findings include a preserved R-wave progression and the absence of any significant STE or precordial Q-waves.

Pseudo-Wellen’s syndrome has a similar pattern of abnormal precordial T-waves that are the result of LVH repolarization abnormalities. There are multiple voltage criteria for LVH, but echocardiography is the superior diagnostic modality. While the EKG above does not meet any of the common voltage criteria, the repolarization abnormalities, often called “strain pattern,” are typical for LVH. The presence of LVH can make EKG interpretation more challenging as the strain pattern can mimic ischemic findings and confound an EKG’s ability to detect ACS, particularly an anteroseptal MI.

Learning Points

Wellen’s Syndrome
General Features

  • Abnormal T-wave pattern present in pain-free state with recent history of angina
    • EKG changes are sometimes called “Wellen’s waves” if patient is having pain
  • Normal or minimally elevated cardiac biomarkers
  • LVH or high voltage can make diagnosis more difficulty

EKG Features

  • Deeply inverted or biphasic T-waves in precordial leads, typically V2-V3
  • Isoelectric or minimally elevated ST-segment (< 1 mm)
  • No precordial Q-waves
  • Preserved precordial R-wave progression

Clinical Significance

  • Suggestive of proximal LAD lesion
  • Not currently an indication for emergent cardiac catheterization but requires admission
    • Coronary angiography is most appropriate testing modality (avoid exercise stress testing)
    • T-wave abnormalities resolve with PCI or CABG
  • Type A (less common)
    • Biphasic T-waves
    • Seen immediately upon reperfusion
  • Type B (more common)
    • Deeply inverted T-waves

General Features

  • EKG is only suggestive of LVH
  • Echocardiography is superior diagnostic modality
  • Often demonstrates ST and T-wave abnormalities, termed “LVH with strain pattern”
  • Numerous diagnostic EKG criteria with limited sensitivity
  • No criteria are recommended for use exclusive of other validated criteria

EKG Features

  • Commonly used criteria include:
    • Sokolow-Lyon- S in V1 + R in V5 or V6 > 35 mm
    • Cornell- R in aVL + S in V3 > 28 mm in males or 20 mm in females
  • STE in V1-V3
  • STD and TWI in I, aVL and V4-V6
  • Increased S-wave depth in III, aVR, and V1-V3
  • Increased R-wave peak time > 50 ms in V5 or V6
  • Increased R-wave amplitude in I, aVL and V4-V6
  • Left axis deviation typical, but can occur with any axis
  • Can see increased QRS and QT duration

Clinical Significance

  • Confounds EKG’s ability to detect ACS, particularly anteroseptal MI, and mimics ACS findings
  • Marker of increased risk of adverse outcome in the chest pain patient
  • Diagnosis of LVH in the presence of intraventricular conduction abnormalities (e.g., fascicular blocks, bundle branch blocks) should be made with caution as they may impact the accuracy of the EKG criteria for LVH

DDx for T-wave Inversions

  • Bundle Branch Blocks
  • CNS Injury
  • Digitalis Effect
  • Intra-abdominal Disorders
  • Juvenile T-wave Pattern
  • Left Ventricular Hypertrophy
  • Metabolic Abnormalities
  • Pericarditis
  • Pre-excitation Syndromes
  • Pulmonary Embolism
  • Toxicologic Abnormalities
  • Ventricular Paced Rhythms

Causes of poor R-wave progression (< 3 mm R-wave by lead V3)

  • Dilated cardiomyopathy
  • LAFB
  • LBBB
  • LVH
  • Misplaced precordial leads
  • Normal variant
  • Pre-excitation syndromes
  • Prior anterior myocardial infarction
  • RVH
